China Premium Quality XLPE Insulated Power Cable for Professional Use wholesale

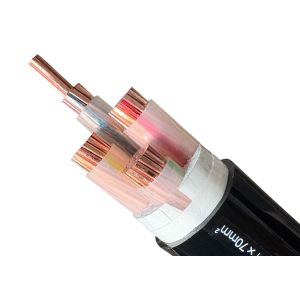

Premium Quality XLPE Insulated Power Cable for Professional Use

Name: Premium Quality XLPE Insulated Power Cable for Professional Use
Brand: Shenghua
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Shenghua

Certification :ISO, CCC, CE, RoHS

Price :Negotiable

Payment Terms :T/T, L/C, D/P

Supply Ability :100000

Delivery Time :30

Packaging Details :single roll wrapped with label, 10 rolls shrink

Model NO. :YJY YJV WDZ-YJY WDZ-YJV

Current :DC & AC

Insulation Material :XLPE

Sheath Material :PE

Material Shape :Round Wire

Wire Core Material :Bare Copper Wire

Model :Yjy Yjv Wdz-Yjy Wdz-Yjv

Brand :Xinxin

Color :White/Black

MOQ :500m

Conductor :Copper

Insulation :XLPE

Sheath :PE

Transport Package :Wooden Steel Drum

Specification :1.1*1.1*0.98m

Trademark :Shanghai Shenghua Cable Group

Origin :Shanghai, China

HS Code :8544492100

Contact Now

Add to Cart

View Product Description

YJY Power Cable: The Safer Choice for Modern Electrical Installations

When specifying cables for your next project, safety and reliability cannot be compromised. The YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable represents the pinnacle of electrical safety engineering. Designed for architects, project engineers, and contractors who prioritize life safety and long-term performance, this cable is the definitive solution for demanding environments. Don't just meet standards—exceed them with a cable built for peace of mind.

Why Our YJY Cable is Your Best Investment

Unbeatable Safety Features for Critical Infrastructure

In a fire, traditional cables can become a major hazard, producing thick, blinding smoke and toxic fumes. Our YJY cable is different. Its core safety features are engineered to protect lives and assets:

Flame Retardant: Significantly inhibits the spread of fire along cable runs, containing the hazard and protecting the integrity of escape routes.
Low Smoke & Zero Halogen (LSOH): In the event of a fire, the LSOH sheath ensures minimal smoke emission and releases no toxic/corrosive gases. This is critical for enabling safe evacuation and protecting sensitive electronic equipment.
Robust Construction: Built with a high-purity copper conductor (IEC 60228 Class 2) and superior XLPE insulation, this cable offers excellent electrical properties, high-temperature resistance (90°C normal operation, 250°C short-circuit), and exceptional durability.

Certified Quality You Can Trust

We understand that certifications are your guarantee of quality. Our YJY cable is rigorously tested and holds major international approvals, including CE, CCC, and KEMA. It complies with a comprehensive set of standards such as IEC 60502, IEC 60331, GB/T 12706-91, and GB/T18380.3-2001. This means you can specify our cable with absolute confidence for projects anywhere in the world.

Designed for Performance and Ease of Installation

Beyond safety, our cable is engineered for real-world application:

Rated Voltage: 0.6/1 kV, suitable for a wide range of power distribution applications.
Flexible Bending Radius: Clear guidelines for single-core (20D) and multi-core (15D) cables ensure easier installation in tight spaces.
Customizable: Insulation color can be provided as per standard or to meet your specific project requirements.

Ideal for Projects Where Safety is Non-Negotiable

The YJY cable is the specified choice for engineers who refuse to cut corners. Its applications are critical to public safety and operational continuity:

High-Rise Buildings & Skyscrapers
Hospitals and Healthcare Facilities
Public Transport Hubs (Airports, Metro Tunnels)
Shopping Malls and Theaters
Power Stations and Petrochemical Plants

Your Next Step Towards a Safer Installation

Choosing the right cable supplier is as important as selecting the right cable. We are a trusted manufacturer committed to providing top-tier products and expert technical support.

Are you ready to enhance the safety profile of your project? Contact us today to request a detailed quote, access full technical specifications, or consult with our engineering team. Let us provide you with the cable solution that builds trust and ensures safety.

Keywords for SEO: YJY Cable, Flame Retardant Power Cable, LSOH Sheath Cable, Low Smoke Zero Halogen Cable, 0.6/1kV Power Cable, IEC 60502 Cable, CCC Certified Cable, CE Certified Cable, Cable for High-Rise Buildings, Safety Cable, XLPE Insulated Cable, Electrical Cable Supplier, Industrial Power Cable, Building Wire, Fire Survival Cable.

Description:
CU/XLPE/LSOH, IEC 60331
IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement

Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Product Name	YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model/Standard	CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA
Conductor Material	Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation Material	XLPE/A
Inner Covering	LSOH
Sheath Material	LSOH, black
Insulation Color	As per standards or customer requirement
Rated Voltage	0.6 kV
Max. Conductor Temperature	Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C
Min. Ambient Temperature	Cable should be preheated if ambient temperature is below 0°C
Min. Bending Radius	Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5%
