China Low Smoke Solution for Critical Installations wholesale

Low Smoke Solution for Critical Installations

Name: Low Smoke Solution for Critical Installations
Brand: Shenghua
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Shenghua

Certification :ISO, CCC, CE, RoHS

Price :Negotiable

Payment Terms :T/T, L/C, D/P

Supply Ability :100000

Delivery Time :30

Model NO. :YJY YJV WDZ-YJY WDZ-YJV

Current :DC & AC

Insulation Material :XLPE

Sheath Material :PE

Material Shape :Round Wire

Wire Core Material :Bare Copper Wire

Model :Yjy Yjv Wdz-Yjy Wdz-Yjv

Brand :Xinxin

Color :White/Black

MOQ :500m

Conductor :Copper

Insulation :XLPE

Sheath :PE

Transport Package :Wooden Steel Drum

Specification :1.1*1.1*0.98m

Trademark :Shanghai Shenghua Cable Group

Origin :Shanghai, China

HS Code :8544492100

Contact Now

Add to Cart

View Product Description

Low Smoke Solution for Critical Installations

In the intricate web of modern infrastructure—from towering skyscrapers and bustling hospitals to vital power stations and deep metro tunnels—safety is non-negotiable. A fire incident in these spaces poses not just a direct threat but also a significant secondary hazard: toxic fumes and dense smoke from burning cables. This is where the YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable proves indispensable. Engineered for maximum safety and reliability, this cable sets the benchmark for clean energy distribution in the most demanding environments.

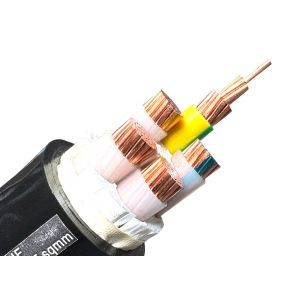

What is the YJY Flame Retardant Power Cable?

The YJY cable is a meticulously engineered power cable designed for enhanced fire safety. Its construction is a testament to modern material science and stringent international standards.

Conductor: Features a high-purity, circular stranded copper conductor (IEC 60228 Class 2), ensuring excellent conductivity and flexibility for easy installation.
Insulation: The core is insulated with Cross-Linked Polyethylene (XLPE), a material renowned for its superior electrical properties, high-temperature resistance (up to 90°C normally, and 250°C during short-circuit), and long-term durability.
Sheath: The key safety feature is the Low Smoke Zero Halogen (LSOH) sheath. In the event of a fire, this material emits minimal smoke and no toxic halogen gases, crucial for safe evacuation and firefighting operations.

This robust construction makes the YJY cable not just a wire, but a critical safety system.

Key Features and Unmatched Benefits

1. Superior Flame Retardancy

The cable is designed to resist the propagation of flame, complying with rigorous flame retardancy tests (IEC 60331, GB/T 18380.3-2001). This helps contain a fire and prevent it from spreading along cable routes.

2. Enhanced Safety with Low Smoke and Zero Halogen

The LSOH sheath is the cornerstone of life safety. Traditional PVC cables can release dense, black smoke and corrosive, toxic gases when burned. YJY cables ensure:

High Visibility: Greatly improved visibility for occupants escaping and for firefighters entering the building.
Non-Toxic: Prevents the release of acidic gases that can damage sensitive electronic equipment and harm human health.

3. Compliance with International and Chinese Standards

Quality and reliability are certified by a host of global and regional standards, including:

International: IEC 60502, IEC 60227
Chinese: GB/T 12706-91, GB306.1-2001
Certifications: CE, CCC, and KEMA approvals ensure the product meets stringent performance and safety benchmarks.

4. Robust Technical Performance

With a rated voltage of 0.6/1kV, this cable is built for robust performance. Its excellent thermal stability (max conductor temperature of 90°C) and clear guidelines for minimum bending radius (15D for multi-core, 20D for single-core) ensure a long service life and reliable operation.

Ideal Applications: Where Safety is Paramount

The YJY Flame Retardant Cable is the preferred choice for engineers and project managers in critical applications:

High-Rise Buildings: Ensuring safe power distribution in evacuation routes and core infrastructure.
Public Spaces: Hospitals, theatres, and shopping malls where large numbers of people congregate.
Critical Infrastructure: Power stations, petrochemical plants, and metro tunnels where operational continuity and safety are vital.
Any installation requiring a clean, safe, and reliable cabling solution.

YJY Cable: Your Partner in Safety

Choosing the right cable is a critical decision that impacts the safety, functionality, and longevity of any building or facility. The YJY XLPE Insulated LSOH Sheathed Flame Retardant Power Cable offers a proven, certified solution that prioritizes human life and asset protection.

Ready to specify the safest cable for your next project? Contact us today for technical specifications, competitive pricing, and expert advice. Ensure your infrastructure is equipped with cables that meet the highest global standards of flame retardancy and low smoke emission.

Description:
CU/XLPE/LSOH, IEC 60331
IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement

Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Product Name	YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model/Standard	CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA
Conductor Material	Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation Material	XLPE/A
Inner Covering	LSOH
Sheath Material	LSOH, black
Insulation Color	As per standards or customer requirement
Rated Voltage	0.6 kV
Max. Conductor Temperature	Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C
Min. Ambient Temperature	Cable should be preheated if ambient temperature is below 0°C
Min. Bending Radius	Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5%
